First Trimester done.  Sure flew by...

Thought I would share this.  The woods teacher across the hall taught a Construction Trades class this last tri, and this is one of the projects they did.  It's a working wooden model of a backhoe, complete with water-powered hydraulic rams (syringes).


Photobucket
Works great, too!  If he spent some time getting all of the air out of the system it would be a lot faster, but as it was he had come in on a non-student school day to finish it up.



On a completely unrelated note...  My 9 year old wanted to do some experimenting last night.

Photobucket

He's fine, didn't even get zapped, but it sure scared the bejeebers out of him.  He says he won't ever do it again unless he has the proper safety equipment, tools, and Mom and Dad's permission...  Not quite the message we were trying to convey when we were talking to him about it, but I guess it will have to do?

Monday, November 26, 2012

Air engines and Sketchup Animations

Been tinkering with this for the last couple of weeks.  A new trimester starts next Monday, and I get to teach a new class.  This is one of the projects I'm hoping will turn out well...  We'll see.  I found this cool air engine project on instructables.com  :

http://www.instructables.com/id/Air-Engine/


As you can see, it is VERY involved, and uses about 30 different machine tools that I don't have in my classroom...  So I set about to re-create it using nothing more than a drill press, a welder, and various hand tools.  Here's what I came up with.

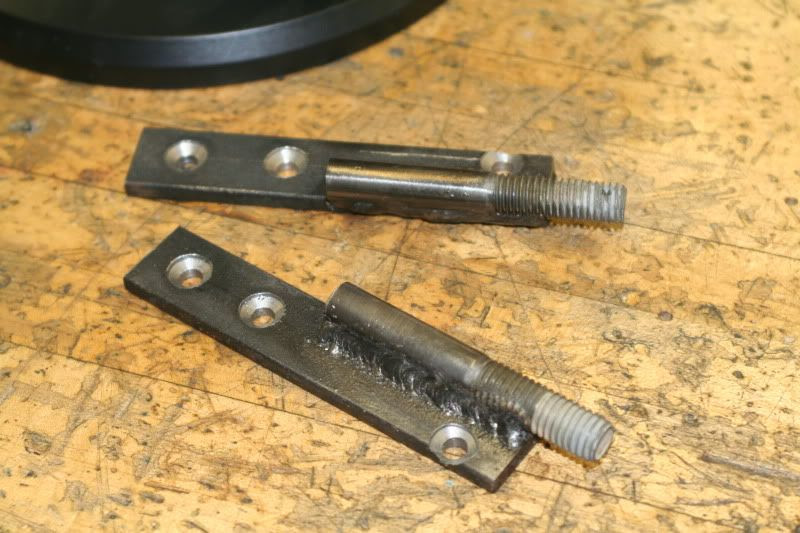

The class this is for is an Engines & Metals class, so there has to be some welding...  Making the "crankcase".

Photobucket
Photobucket
Photobucket
Photobucket

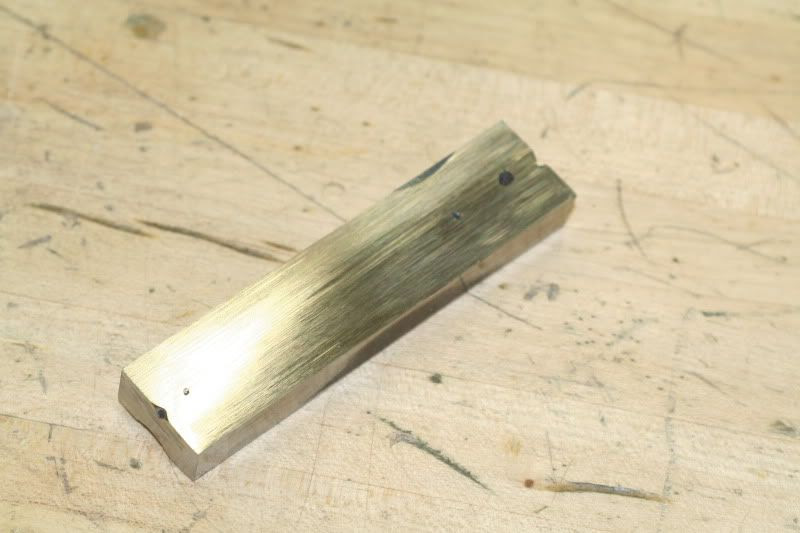

Making the cylinder.

Photobucket
First attempt at a piston- using an allen bolt I had sanded down.  Didn't work- didnt have enough piston skirt and it would get kinked sideways and jam.

Photobucket
Photobucket
Beggining assembly- the piece of bicycle chain was used for the crankshaft.

Photobucket
Exploded view of parts.  Note the piston- I cheated a little and spun it down on my Smithy Lathe.  I think with the right size drill bit and metal rod, I can get it to work with some light sanding in the drill press.

Photobucket
Assembled!

Photobucket
Photobucket
Some vid of it running!



And this was a breakthough for me- I finally figured out how to "animate" stuff in Sketchup.  I did this using the Proper Animation plugin.  Fairly simple, hoping I can get it to work a little smoother.  Still playing with it.





So there you go.  I have several changes in mind for the one my students will build, hopefully making it a little simpler to lay out and build without using any machine tools.  Watch for some samples in a few weeks!

Friday, November 16, 2012

Mikuni Mouse

Absolutely no plan in mind... Just start cutting.

So I had an old carburetor I wanted to cut up to make a cutaway.  I started cutting and realized I would have a fairly large chunk leftover.  I have no idea how my mind finally arrived at this particular destination, but as luck would have it a computer mouse and a Mikuni Carburetor were about to cross paths.

Had this mouse that worked, but had some loose buttons.

Photobucket

Had this carb I had cut up...

Photobucket

Cut the mouse up a little more.

Photobucket

Machine a bigger hole in the carb.

Photobucket

after GOBS of mucking around- the final set of parts.

Photobucket


Assembled and working!

Photobucket

Photobucket


Photobucket

Tuesday, November 06, 2012

"CompuStow"

This year has been pretty rough as far as reserving the computer lab goes...  There were a lot of changes this year and as a result all of the available computer labs got booked over the periods that I was supposed to have access to them.  Makes it really hard when the only one I have access to is the Library, and half the teachers in the school are fighting for it too!

In the last 3 years, I've managed to go from 1 1/2 working computers in my classroom to 14.  This was plenty for Lego Robotics because we work in pairs.  When I do my CAD unit or if we need to do any individual computer time, I would have to schedule a lab.  I was out of space to add more computers, and then I had a *ligghhhttt bullllbb!* moment.  I call it the CompuStow.


Photobucket
Photobucket

Still have a lot of things I want to do with it, but it's useable!  Need to do something with the cords and put some handles on it to make it easier to get in and out.

Storing the computers like this will give me more computers without taking away any of my shop workspace.  Plan on trying out these two for awhile to see how it works, then if I can scrounge up a few more flat screen monitors, I'd like to do the 4 computers I already have taking up one full table and maybe 2 more after that, bringing my total to 19 computers.

Some work in progress pics:

  Photobucket
Photobucket
Photobucket
Photobucket
Photobucket
Photobucket And what it was SUPPOSED to look like... I was hoping to get the smaller flat screen monitors that have the computer mounted to the back of them, but that didnt work out. Photobucket
Photobucket
Photobucket
Just for fun, the rest of the computer lab.
