Air engines and Sketchup Animations

Been tinkering with this for the last couple of weeks.  A new trimester starts next Monday, and I get to teach a new class.  This is one of the projects I'm hoping will turn out well...  We'll see.  I found this cool air engine project on instructables.com  :

http://www.instructables.com/id/Air-Engine/


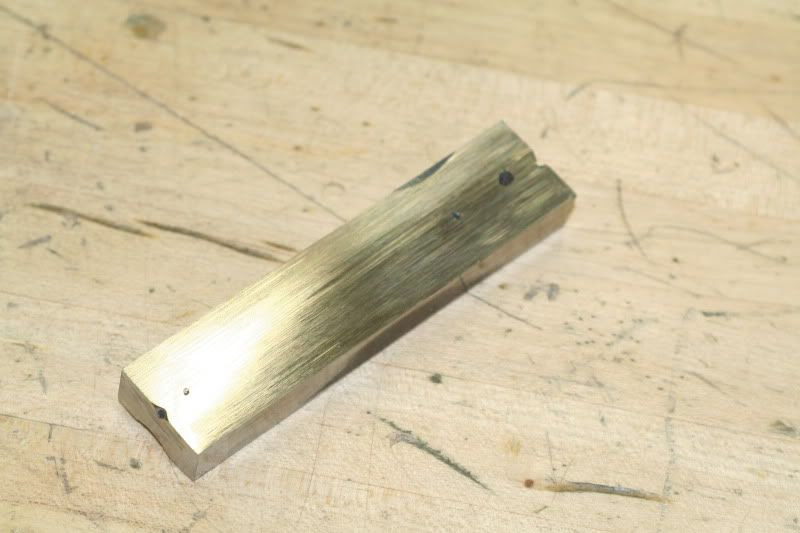

As you can see, it is VERY involved, and uses about 30 different machine tools that I don't have in my classroom...  So I set about to re-create it using nothing more than a drill press, a welder, and various hand tools.  Here's what I came up with.

The class this is for is an Engines & Metals class, so there has to be some welding...  Making the "crankcase".

Photobucket
Photobucket
Photobucket
Photobucket
Making the cylinder.

Photobucket
First attempt at a piston- using an allen bolt I had sanded down.  Didn't work- didnt have enough piston skirt and it would get kinked sideways and jam.

Photobucket
Photobucket
Beggining assembly- the piece of bicycle chain was used for the crankshaft.

Photobucket
Exploded view of parts.  Note the piston- I cheated a little and spun it down on my Smithy Lathe.  I think with the right size drill bit and metal rod, I can get it to work with some light sanding in the drill press.

Photobucket
Assembled!

Photobucket
Photobucket
Some vid of it running!



And this was a breakthough for me- I finally figured out how to "animate" stuff in Sketchup.  I did this using the Proper Animation plugin.  Fairly simple, hoping I can get it to work a little smoother.  Still playing with it.





So there you go.  I have several changes in mind for the one my students will build, hopefully making it a little simpler to lay out and build without using any machine tools.  Watch for some samples in a few weeks!
